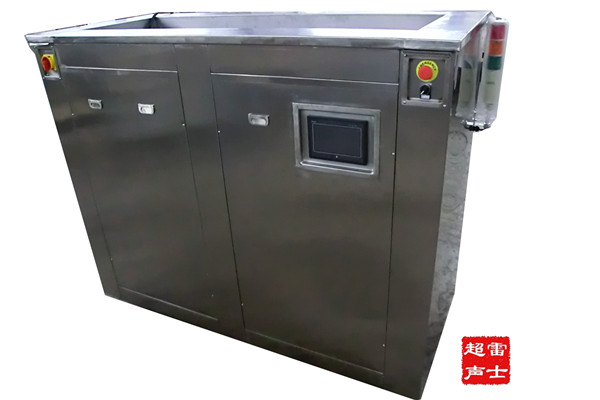

無錫雷士工控PLC超聲波清洗機，該設備由PLC觸摸屏集成控制，具有清洗漂洗功能，定時，液位保護，障礙報警等功能。
設備參數
1. 清洗機內徑： 1500*500*1000mm
2. 外形尺寸: 1800*800*1300mm
3.排液形式： 手動啟閉，2吋排水閥
4.超聲功率: 6000W
5.超聲頻率： 28K
6.加熱功率: 10kw
7.管道口徑： 2吋
8.鼓泡風機功率: 750w
9.材質： 不銹鋼304 2B
10.超聲輸入電壓: AC380V 50Hz
11.加熱輸入電壓: AC380V 50Hz
操作指南
1.首先在超聲槽體內放水，一般離槽沿30cm（或根據客戶自身需要），設備內部安裝有液位探測器，無水或水位低于該探測器，紅燈亮起訊響報警15秒。
2.打開設備總電源，在機器左側。
3.如緊急停止按鈕在拍下狀態，則拔起。
然后選擇下方的自動或手動工作開關。
4.在參數設定畫面根據實際情況進行設定，以下介紹自動工作設定。
5.在參數設定畫面根據實際情況進行設定，以下介紹手動工作設定。
將開關撥到手動狀態。
根據客戶要求，可按超聲1，超聲2，設備進入手動工作狀態。待超聲到達指定的工作時間，訊響發出嘀嘀聲，黃燈亮起15秒提醒。再按手動鼓泡，此時鼓泡漂洗開啟，待鼓泡程序到達設定時間后，訊響發出嘀嘀聲，黃燈亮起15秒提醒。
The principle of cleaning for LSA-E84 ultrasonic cleaner: The ultrasonic generator converts the power frequency electric energy to high frequency electric signal of 25KHz, and transmit it to the ultrasonic transducer by high frequency cable. After applied with high frequency voltage, the transducer generates powerful ultrasonic vibration, which broadcasts quickly in the fluid, and acts on the liquid medium of the ultrasonic rinse tank, and generates the vibration of 25 thousand times/second, to shake off the dirt attached on the work piece and device, to achieve the cleaning purpose.
The device is controlled by PLC touch screen integrated. The device has multiple functions like wash and rinse, timing, liquid level protection, obstruction alarm and so on.
Equipment Parameter
1. Inside-diameter of the machine: 1500*500*1000mm
2. Boundary dimension: 1800*800*1300mm
3. Drainage form: On or off manually, 2 inches drain valve
4. Ultrasonic power: 6000W
5. Ultrasonic frequency: 28K
6. Heating power: 10kw
7. Caliber of pipeline: 2 inches
8. Bubbling fan power: 750w
9. Material: stainless steel 304 2B
10. Ultrasonic input voltage: AC380V 50Hz
11. Heating input voltage: AC380V 50Hz
